Satellite Fitting Plate

£9.99 ex VAT

Clear
SKU: SWI-SP Category:

Description

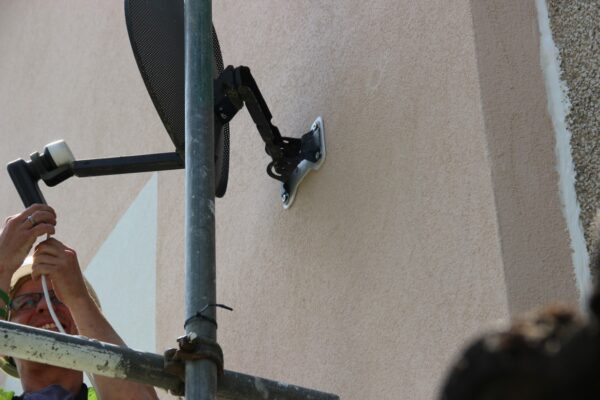

The SWIFIX Satellite Fitting Plate is used for refitting a standard satellite dish through External Wall Insulation (EWI) without the need for timber providing a completely watertight seal to fixings and cables.

A cost-effective, maintenance-free way of fixing items back through your EWI system, whether it’s before or after the insulation system has been installed. SWIFIX fixings are designed to eliminate the risk of cold spots and water ingress when installing fixings; this ensures that the system remains functioning optimally and the thermal efficiency of the system is maintained.

Manufactured from high-quality plastics, the SWIFIX satellite plate fittings have been designed to provide an aesthetically pleasing appearance and enhance the property’s new exterior. The SWIFIX Satellite Plate Fittings have been tested by the BRE (British Research Establishment) for strength, compression and load-bearing capabilities.

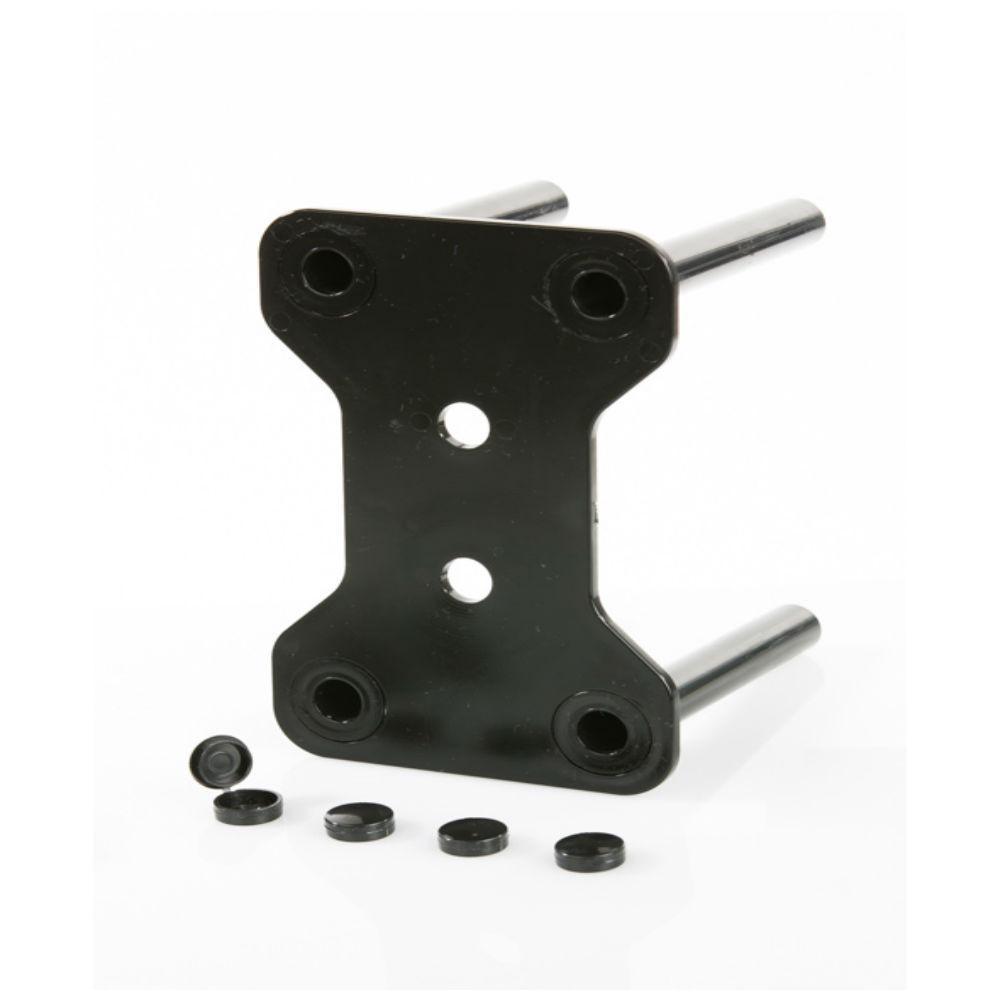

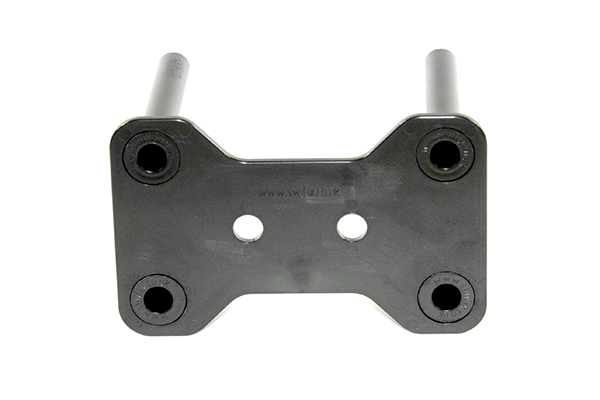

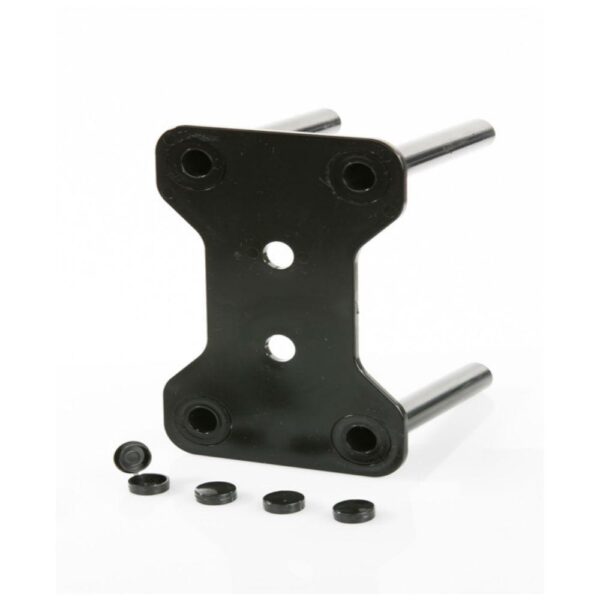

Satellite Fitting Plate (SWI-SP)
  • To be fitted through external wall insulation to the existing substrate
  • Provides a watertight seal without the need for mastic or silicone sealants
  • Ideal for retrofitting and maintenance
  • Significant reduction in labour costs
  • Reduced installation time
  • Increased surface area of insulation
  • Reduced risk of cold spots
  • Durable and high quality
  • The standard product allows for an overall system depth of 120mm. For systems with greater system thickness, please add our SWI-EX Extension Tube for overall systems of 220mm
  • Supplied with 6no -8mm neoprene gaskets
  • Additional neoprene washers allow cable penetrations to be sealed watertight when fitting

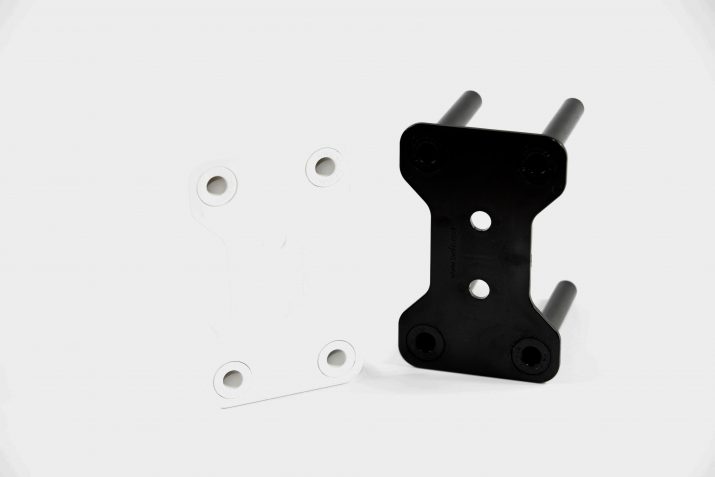

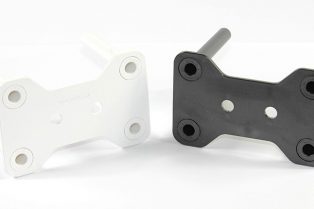

  • Available in black and white
APPLICATION

Our insulation fixings are suitable for use with the following external wall insulation systems:

  • EPS
  • XPS
  • Mineral Wool
  • Phenolic
To find out more, call us on 01884 560477. Or drop us a line using the form on our contact page.

Additional information

Weight 130 kg
Colour

Black, White

Colour

Black, White
