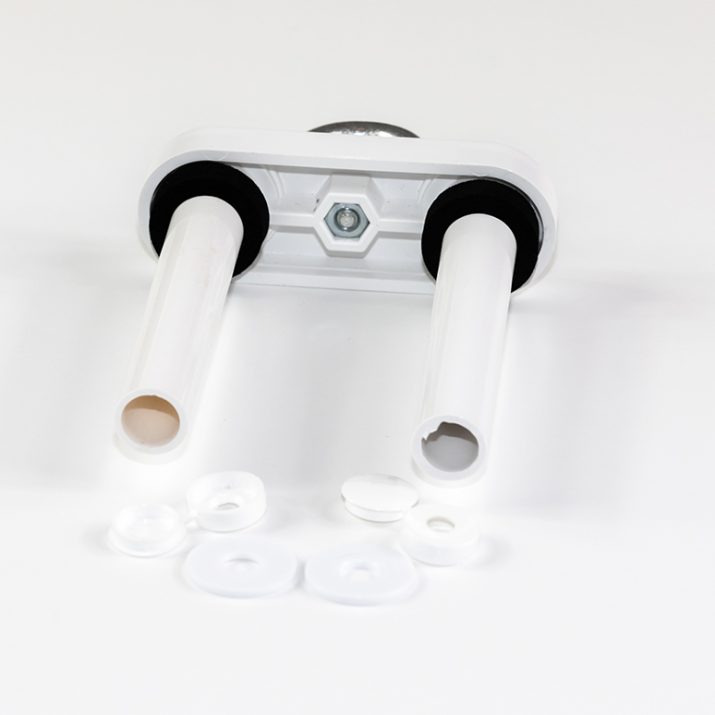

Connection Point Fitting

Description

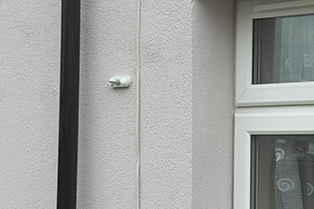

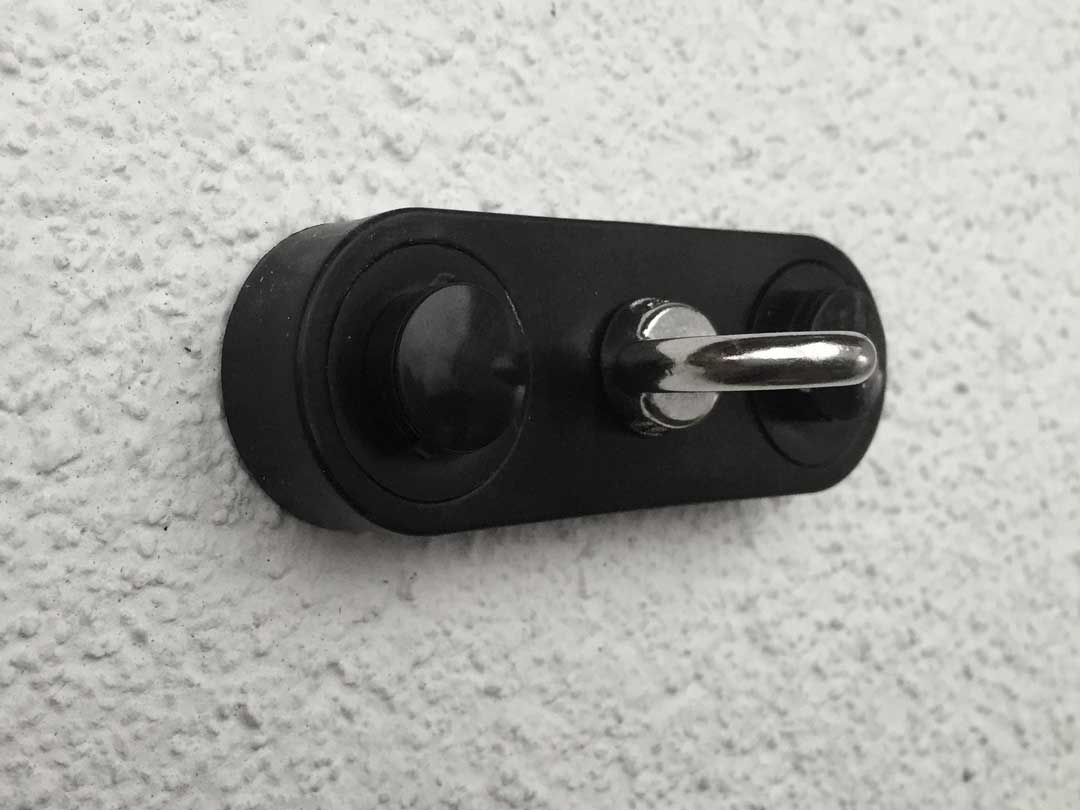

The SWIFIX Connection Point Fitting is used for securing cables, washing lines, pigeon netting hanging baskets and BT and utility cables to the existing substrate, it is fitted through external wall insulation to the existing substrate, providing a watertight seal without the need for mastic. Designed to go straight through the External Wall Insulation (EWI) system and reduce thermal bridging.

Connection Point Fitting (SWI-WL)

• Ref: SWI/ST

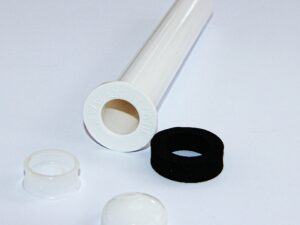

• The standard product allows for an overall system depth of 120mm, for systems with greater system thickness please add our SWI-EX Extension Tube for overall system’s of 220mm

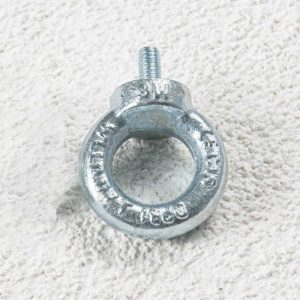

• M6 size eyebolt
• Thread length: M6 (6mm)
• All fittings supplied with 8mm Neoprene gasket.
• Available in white and black.

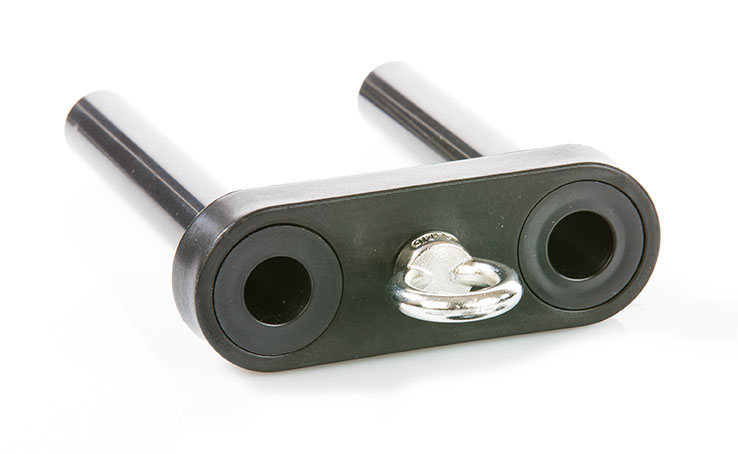

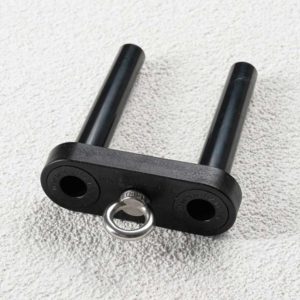

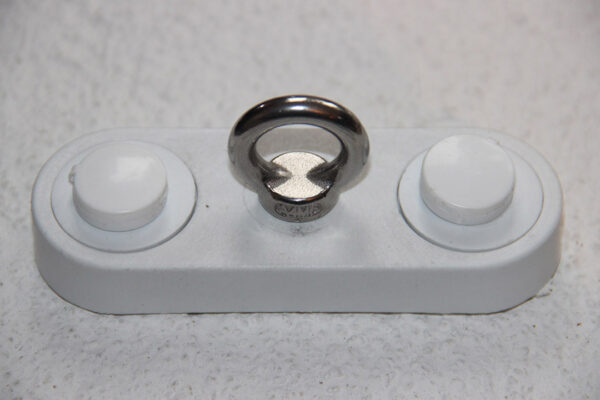

Connection Point Fitting (SWI-WL)

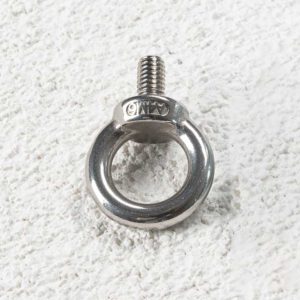

• Ref: SWI/WL with stainless steel eyelet
• The standard product allows for an overall system depth of 120mm, for systems with greater system thickness please add our SWI-EX Extension Tube for overall system’s of 220mm
• A4/316 Marine Grade Stainless Steel Eyebolt. DIN 580
• Thread length: 9mm
• Available in white and black.

Application

Our insulation fixings are suitable for use with the following external wall insulation systems:

• EPS
• XPS
• Mineral Wool
• Phenolic

To find out more, call us on 01884 560477. Or drop us a line using the form on our contact page.
