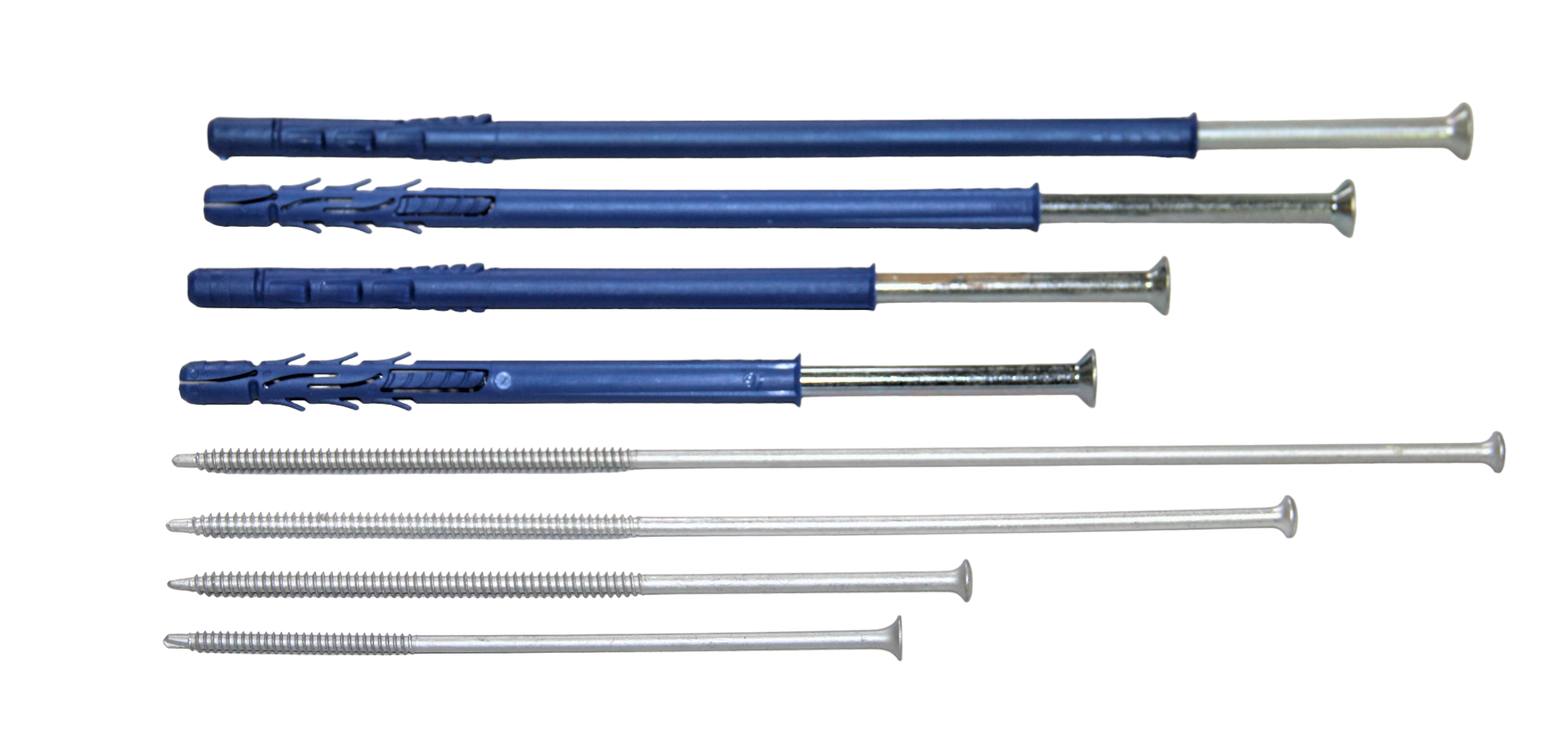

Rawlplug Fixings

£0.15£3.18 ex VAT

Clear
SKU: SWI-SP-1 Category:

Description

Our products are compatible with various methods of installation, depending on the substrate being secured to.

Below is a list of the types of fittings used for securing our products into a brick concrete substrate, all of which are available from Rawlplug.

Rawlplug

Choose the FF1 or KDS fixings for the required substrate:
  • 10x100mm – To suit overall system thickness of 50mm
  • 10x120mm – To suit overall system thickness of 80mm
  • 10x140mm – To suit overall system thickness of 100mm
  • 10x160mm – To suit overall system thickness of 120mm
  • 10x200mm – To suit overall system thickness of 150mm
  • 10x240mm – To suit overall system thickness of 180mm
  • 10x300mm – To suit overall system thickness of 240mm
Download specs and data sheets for fixings:

Due to the complexity of building materials, tools, fixing elements and installation techniques, a comprehensive recommendation depends on full and detailed understanding of specific site conditions. It is therefore the responsibility of the installer to determine the type and fixing required based on site specific requirements and pull outs tests if required.



FF1

FOR USE IN AIRIATED BRICK/BLOCK/CONCRETE

Unit Cost Exc Vat

M10





100

mm

To suit overall system thickness of 50mm

£0.40

120

mm

To suit overall system thickness of 80mm

£0.46

140

mm

To suit overall system thickness of 100mm

£0.54

160

mm

To suit overall system thickness of 120mm

£0.61

200

mm

To suit overall system thickness of 150mm

£1.37

240

mm

To suit overall system thickness of 180mm

£1.71

300

mm

To suit overall system thickness of 240mm

£3.18

M8

80

mm

To suit overall system thickness of 50mm

£0.25

100

mm

To suit overall system thickness of 50mm

£0.32

120

mm

To suit overall system thickness of 80mm

£0.36

140

mm

To suit overall system thickness of 100mm

£0.45

KDS

FOR USE IN BRICK AND CONCRETE

Unit Cost Exc Vat

M10

100

mm

To suit overall system thickness of 50mm

£0.22

120

mm

To suit overall system thickness of 80mm

£0.34

140

mm

To suit overall system thickness of 100mm

£0.36

160

mm

To suit overall system thickness of 120mm

£0.37

200

mm

To suit overall system thickness of 150mm

£0.54

240

mm

To suit overall system thickness of 180mm

£0.77

M8

120

mm

To suit overall system thickness of 80mm

£0.18

140

mm

To suit overall system thickness of 100mm

£0.20

WX-58

FOR USE IN CP AND SHEATHING BOARD

Unit Cost Exc Vat

M6

105

mm

To suit overall system thickness of 115mm

£0.15

115

mm

To suit overall system thickness of 125mm

£0.16

125

mm

To suit overall system thickness of 135mm

£0.18

150

mm

To suit overall system thickness of 160mm

£0.23

175

mm

To suit overall system thickness of 185mm

£0.36

200

mm

To suit overall system thickness of 210mm

£0.47

250

mm

To suit overall system thickness of 260mm

£0.91

300

mm

To suit overall system thickness of 310mm

£1.26

To find out more, call us on 01884 560477. Or drop us a line using the form on our contact page.

Additional information

Fixing

FF1 M10, FF1 M8, KDS M10, KDS M8, WX-58 M6

Size

80, 100, 105, 115, 120, 125, 140, 150, 160, 175, 200, 240, 250, 300
